1. Key Pain Points in Conveyor & Logistics Equipment Operation

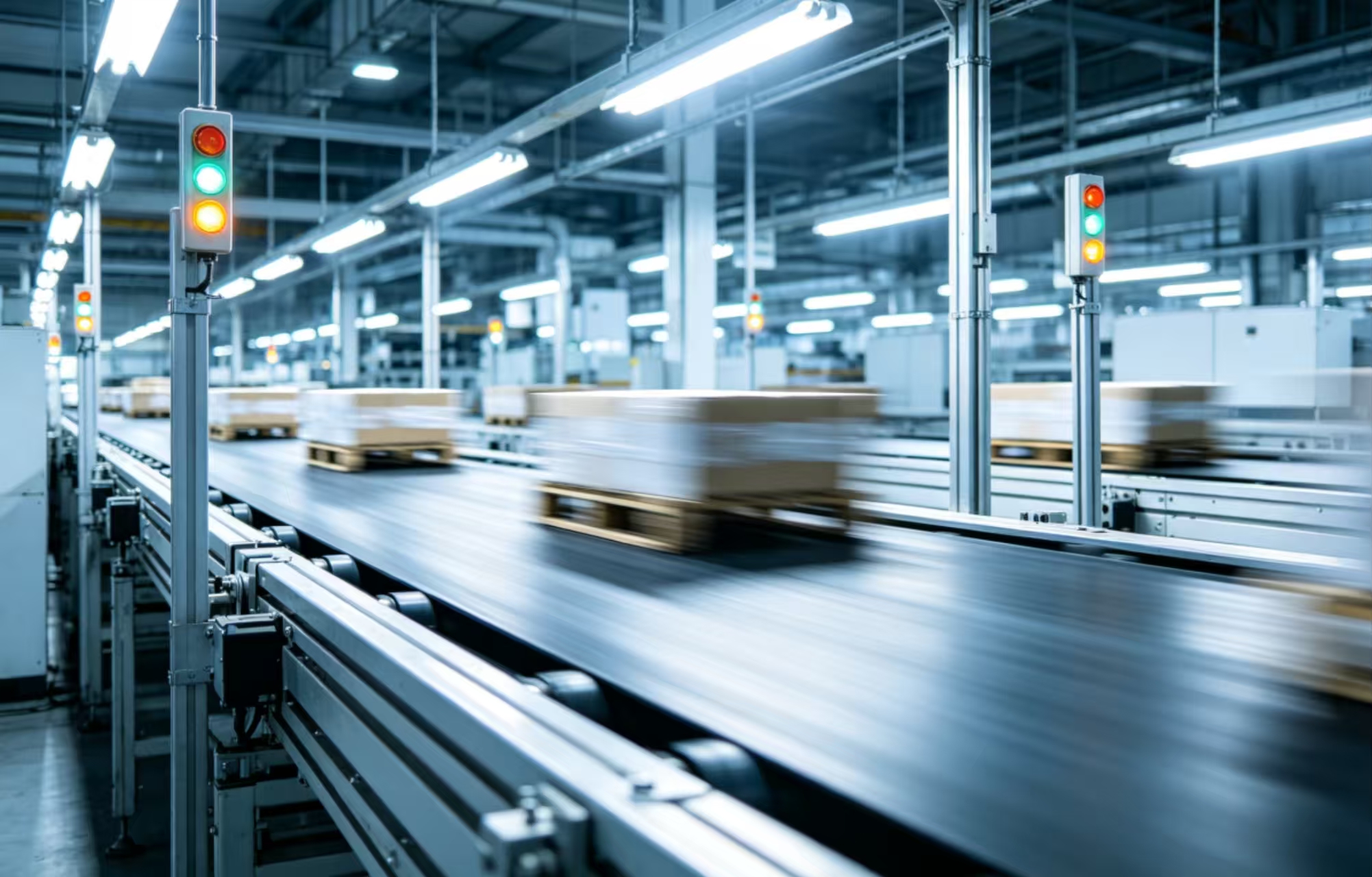

Conveyor and logistics equipment (belt conveyors, roller lines, elevators, sorters, automated stereoscopic warehouses, etc.) operate in complex and high-frequency working environments, facing the following common challenges that affect operational efficiency and equipment service life:
-
Long-shaft misalignment: Multi-pivot installation of conveyor shafts leads to poor coaxiality, resulting in uneven bearing wear, overheating, and abnormal noise.
-
Dust & debris intrusion: Dust, packaging debris, and small particles in logistics warehouses, production workshops, and outdoor conveying scenarios easily enter the bearing, causing jamming and premature failure.
-
Continuous light-to-medium load & long-term operation: Equipment runs continuously for a long time (often 24 hours a day during peak logistics periods), requiring high bearing stability and fatigue resistance.
-
Difficult maintenance & long downtime: Traditional bearings require separate assembly of bearing and housing, and replacement involves complex disassembly, which prolongs equipment downtime and affects logistics efficiency.
-
Corrosion from harsh environments: Outdoor conveyors or humid warehouse environments are prone to moisture erosion, leading to bearing rust and structural damage.
2. Pillow Block Bearing Unit Solution for Conveyor & Logistics
2.1 Core Adaptation Advantages
Targeting the pain points of conveyor and logistics equipment, the pillow block bearing unit adopts integrated design and professional structural optimization to provide reliable and efficient support for equipment operation:
-
Superior self-aligning performance: The spherical outer ring cooperates with the cast iron housing, which can automatically compensate for ±2° shaft misalignment, effectively solving the problem of poor coaxiality caused by multi-pivot installation of conveyor shafts, avoiding additional loads and extending bearing service life.
-
Enhanced dustproof & waterproof sealing: Equipped with double-lip rubber seals and inner dust covers, it forms a dual protection barrier, effectively blocking dust, debris, and moisture from entering the bearing cavity, ensuring stable operation in dusty and humid logistics environments.
-
Stable load-bearing & fatigue resistance: The reinforced inner ring and high-quality bearing steel material are adopted,经过 special heat treatment, which improves the bearing’s load-bearing capacity and fatigue resistance, fully adapting to the long-term continuous operation of conveyor equipment under light-to-medium loads.
-
Integrated design for easy installation & maintenance: The bearing and housing are integrated into one unit, eliminating the need for separate matching and complex assembly. Installation and replacement can be completed in 15 minutes, greatly reducing equipment downtime and maintenance costs.
-
Anti-loosening & anti-vibration: Equipped with set screw or eccentric sleeve locking structure, it can firmly lock the shaft, preventing bearing loosening and inner ring creep under the vibration generated by conveyor operation, ensuring stable operation of the equipment.
2.2 Main Application Equipment & Recommended Models
|
Conveyor & Logistics Equipment Type
|
Recommended Bearing Model
|
Common Shaft Diameter
|
Typical Application Scenarios
|
|---|---|---|---|
|
Belt Conveyor (light-duty)
|
UCP204, UCP205, UCF205
|
20mm, 25mm
|
Warehouse sorting, small-package conveying, assembly line matching
|
|
Belt Conveyor (medium-duty)
|
UCP206, UCP207, UCP208
|
30mm, 35mm, 40mm
|
Bulk material conveying, factory workshop material transportation
|
|
Roller Conveyor & Sorter
|
UCT204, UCT205, UCP205
|
20mm, 25mm
|
Automated logistics sorting, express sorting centers, stereoscopic warehouses
|
|
Elevator (bucket elevator, belt elevator)
|
UCP208, UCP209, UCF209
|
40mm, 45mm
|
Vertical material lifting in warehouses, grain depots, and production workshops
|
|
Automated Stereoscopic Warehouse Conveyor
|
UCP205, UCP206, UCT206
|
25mm, 30mm
|
Automated storage and retrieval systems, intelligent logistics conveying
|
2.3 Critical Technical Details
-
Sealing system: The double-lip contact seal is made of high-temperature and wear-resistant rubber, which can effectively block particles ≥0.01mm and prevent moisture intrusion, adapting to the dusty and humid environment of logistics warehouses.
-
Lubrication configuration: Pre-filled with high-temperature and anti-wear lubricating grease at the factory, suitable for -20℃~120℃ working environment, ensuring stable lubrication during long-term continuous operation without frequent refueling.
-
Housing material: Adopt high-strength cast iron housing, which has good rigidity and shock resistance, can withstand the vibration generated by conveyor operation, and is not easy to deform.
-
Locking method: Standard set screw locking is suitable for most conveyor scenarios; eccentric sleeve locking can be selected for equipment with large vibration, which improves the anti-loosening effect by 30%.
3. Installation & Maintenance Guidelines
3.1 Installation Steps
-
Clean the conveyor shaft and the mounting surface of the bearing housing, remove burrs, oil stains, and dust to ensure a smooth and clean mounting surface.
-
Fix the bearing housing on the conveyor frame with bolts, pre-tighten the bolts (do not fully lock them temporarily) to reserve adjustment space.
-
Slide the bearing unit onto the conveyor shaft, adjust the position to align with the conveyor roller or sprocket, then tighten the set screw (or eccentric sleeve) to lock the bearing on the shaft.
-
Rotate the conveyor shaft manually to check for jamming or abnormal resistance; if everything is normal, fully lock the bolts of the bearing housing.
-
Run the conveyor with no load for 30 minutes, check the bearing temperature (≤70℃) and vibration status, and put it into formal operation after confirming no abnormalities.
3.2 Maintenance Tips
-
Periodic inspection: Check the bearing temperature, vibration, and seal integrity every month; if abnormal noise, overheating, or oil leakage is found, stop the machine for inspection and handling in time.
-
Lubrication replenishment: For equipment operating 24 hours a day, replenish the same type of lubricating grease every 6 months; for equipment with intermittent operation, replenish it every 12 months, and the grease filling amount is 1/3 of the bearing cavity.
-
Cleaning and protection: Regularly clean the dust and debris around the bearing unit to avoid accumulation of debris affecting the sealing effect; for outdoor conveyors, add a protective cover if necessary to prevent rainwater erosion.
-
Replacement standard: When the bearing has obvious wear, rotation jamming, or the seal is damaged and cannot be repaired, replace the bearing unit in time to avoid affecting the normal operation of the conveyor.
4. Advantage Comparison vs Ordinary Bearings
|
Comparison Item
|
Pillow Block Bearing Unit
|
Ordinary Bearing + Separated Housing
|
|---|---|---|
|
Installation Difficulty
|
Low; integrated unit, plug-and-play, no complex alignment
|
High; need to match bearing and housing, repeated alignment, time-consuming
|
|
Dustproof & Waterproof Performance
|
Built-in double seal, strong protection, suitable for dusty logistics environments
|
Need additional installation of dust cover, poor sealing, easy to enter debris and moisture
|
|
Self-aligning Ability
|
Can automatically compensate for shaft misalignment, adapting to multi-pivot installation
|
Strict requirements on installation coaxiality, easy to wear due to misalignment
|
|
Maintenance Cost
|
Replacement only takes 15 minutes, minimal downtime, low maintenance cost
|
Complex disassembly and assembly, downtime ≥1 hour, high maintenance cost
|
|
Service Life (Logistics Conveyor Condition)
|
Average service life ≥10,000 hours
|
Average service life ≤6,000 hours, frequent replacement
|
|
Anti-vibration & Anti-loosening
|
Special locking structure, not easy to loose under vibration
|
Easy to loose and run inner ring under conveyor vibration
|
